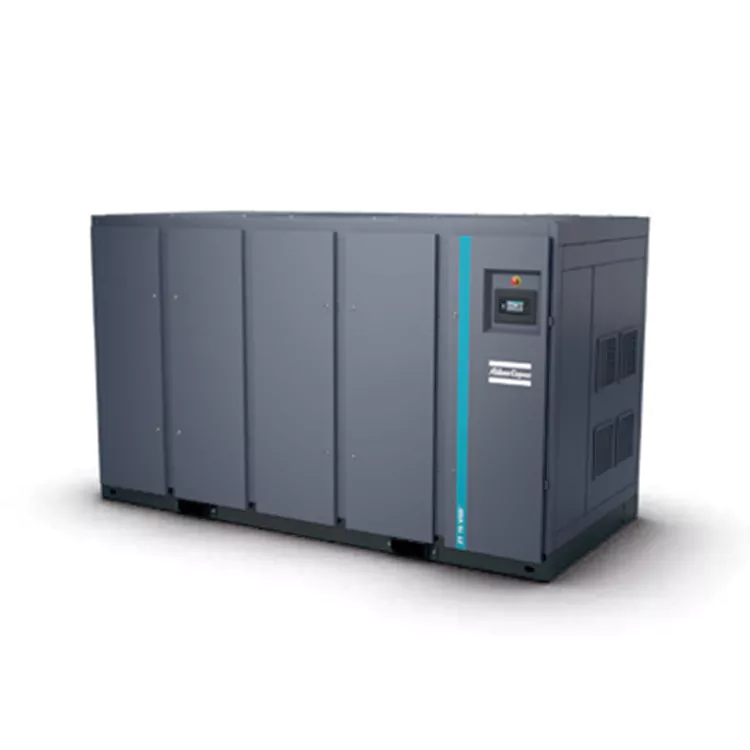

DECHUAN Oleum Free Air Compressoris fabricat pro Labs semiconductoris pro exportatione directa. Haec ratio specialitas praebet certificatum oleum liberum aerem ne contagione lagani mundati et pretiosorum defectuum micro-chiporum fabricandi. Contact us!
Ad certas utilitates utilitates instituendas ad certas investigationis facultates, fontem e Sinis Olei Free Air Compressoris pro Praebitoribus Semiconductoris. DECHUAN solutiones aeris puritatis summus usus est sigillis solitariis carbonis multi- iactis ad hydrocarbonum vestigium tollendum, qualitatis gasi pristinae curandi Pii etching criticae.
In fabricatione semiconductoris et lithographia tenuis veli, etiam una gutta microscopica vaporum olei per lineam aerem vectus totam massam productionis labefactare potest. Hoc speciale productum machinatum est ad signa puritatis absolutae summae occurrere;
• TÜV Certificatae Classis 0 Aeris Delivery: Nostra systemata stricturam tentationem per varias temperaturae operandi rationes. Analysis independens confirmat nulla vestigia olei in output aeris amnis absolute.
• Corrosio-Liberi Semitae Aeris Internae: Omnis pars limbi, fascis frigidior, et separatio matricis inferioris cubiculi compressionis facta est e ferro intemerato premium ne rubigine incanduit ne lineas aerem purgatorium contaminaret.
• Provectus Elektronikon® Integration: Moderator integratus arcte tramites metri operationales et lineamenta proactiva salutis shutdowns ut caveat neve aer immundus unquam lab gridi intrat.
In fabricatione lagani semiconductoris, una gutta olei aerosol integram environment munditiam contaminare potest, milia laganae siliconis evertit et decies centena millia in tempore productionis deperditae causat. Compressores traditi aeris praestare non possunt absolutam puritatem hydrocarbon zerum pro his processibus nanometricis requisitis.
Proprium Oleum Free Air Compressoris pro Semiconductor Labs spondet purum processum securitatis:
• Certified ORDO 0 Air Flow: Expertus stricte per TÜV per extremas scelerisque et pressiones iugis ut nulla praesentia oleum absolutum curet.
• Interna particulata libera: Immaculata ferrum precoolers et pinna stellata caloris nummularii eliminare incanduit oxidationis vel chymicis effusio intra aerem iter.
• Electronic Scutum Monitoring: Proactive sustentationem terrores et culpae automatariae shutdowns ne systema deflexionum perveniat antequam instrumenta mundissima tua perveniant.
• Systema Potentiae Rating: 55kw - 900kw summus densitas configurationum.
• Volumetric Delivery Rate: 4.2 - 148.5 m³/min mundus output amnis.
• Oleum Content Classification: ISO 8573-1 Classis 0 oleum liberum sanatio omnino.
• Refrigerationem Layout: Immaculatam ferrum fluidum refrigerans chemicae outgassing prohibens.
ZR/ZT 55-90 (FF) STD| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR/ZT 110-160 (FF) STD .
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-3900 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2). | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2). | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2). | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Secundum ISO 1217 Annex C, 4th Edition (2009), condiciones referentes ad unitatem perficiendam sunt hae:
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· Inlet temperies: 20°C
Dispositio FAD mensuratur in pressionibus operating sequentibus:
Constantini celeritatis exempla;
-7.5 bar exempla: 7 bar
-8.6 bar exempla: 7 bar
-10 bar exempla: 9 bar
exempla VSD:
-8.6 bar exempla: 7 bar
-10.4 bar exempla: 9 bar
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum modum mensuratum 2151:2004 (ISO 9614/2 intensio soni perspiciendi modum). Nuper addita est correctio facta KpAd incerta, codice teste uotis.
(3) V1= 380V, V2=400V.
(4) Pondus est tantum referendi; pondus ipsa valebit.
ZR/ZT 200-275 (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD —10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD —10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD —10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
-Relativehumidity: 0%
-Absolute lingua pressura: 1bar
-Inlet temperatus: XX°
Dimittite rate (FAD) metiri in sequentibus pressuras operating
Genus assidui celeritatis:
-7.5 talea genus: 7 bar
-8.6 talea genus: 7 bar
-10 talea genus: 9 talea
VSDtype:
-8.6 talea genus: 7 bar
-10.4 talea genus: 9 talea
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd).
ISO secundum 2151: 2004 (utendi
Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus tantum referendi est; ipsa suppeditabit pondere.
ZR 300-750
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD —10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD —10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD —10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD —10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD —10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR 200X-400X
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
Fabrica electronica in Asia fabricante DECHUAN systema aeris speciale inauguravit ut ansas et bracchia experimenti nitrogenis generationis nobilissimae puritatis nitrogenis supplerent. Antea, compressores vexillum permiserunt vapores olei ad transmigrandum in filtras lineas praeteritas, lithographiam efficiens et parvas fracturas in lagano tunicas efficiens. Postquam Olei Free Air Compressoris semiconductoris Labs insertis, lab nuntiavit nullas lineas contaminationis olei relatas incidentes, salvis mundandis substantialibus purgandis et recalibrationibus per duos annos continuae operationis constat.
• Steel Material Upgrade: Nos omnia signa interna emissa componimus cum summus gradus immaculatus ferro obviam strictae micro-contaminationis guidelines.
• Protocolla Provectus Communicationis: Unitas praevia est cum protocollis communicationum specialibus onerata, permittens centra mundissima control ut metri aeris monitoria remotius.
• Foedus Structural Footprint: Interior layout est optimized ut vestigium minimizet, ut facile in angustiis laboratorium basimentis spatia utilitates instituat.
A: Ita, aer noster output plene compatitur cum dryers desiccant provectioris cleanroom et systematum filtration sub-micron. Quia aer rudis nullus vaporum olei continet, punctus usus singularium filorum non plusculum fiet cum caligo olei, vitam colum extendens.
A: Oleum Free Air Compressoris semiconductoris Labs notat spatium spiramenti corporis atmosphaerici inter calces habitationi olei-imbricatae et cubiculi compressionis aridae. Specialitas sigilli anuli carbonis non-contactus cum canalibus pressionis negativis paribus est, ut quaelibet caligo olei calces ab intundo mundati aeris rivi penitus obstruatur.
A: Elektronikon® moderatoris exempla notitiarum vitalium pluries in secundo. Si clavus temperatus in quovis stadio deprehensus est, ratio statim claudit automatum claudit et valvulas solitarias claudit, aer incooltus in amni tuo lab's sensitivo instrumento numquam defluit.
Copyright © 2025 Dechuan Compressor (Shanghai) Co., Ltd. All Rights Reserved.
