depictio producti

Spatium efficientiae maximize iubendo tutum Integratum Olei Injecti Cochleae Compressoris de DECHUAN. Plena Feature extensionis integram sicciorem includit cum puncto 5°C ros pressionis rating, liberans aerem siccum, mundum, qui instrumenta amni protegit a rubigine damnum.

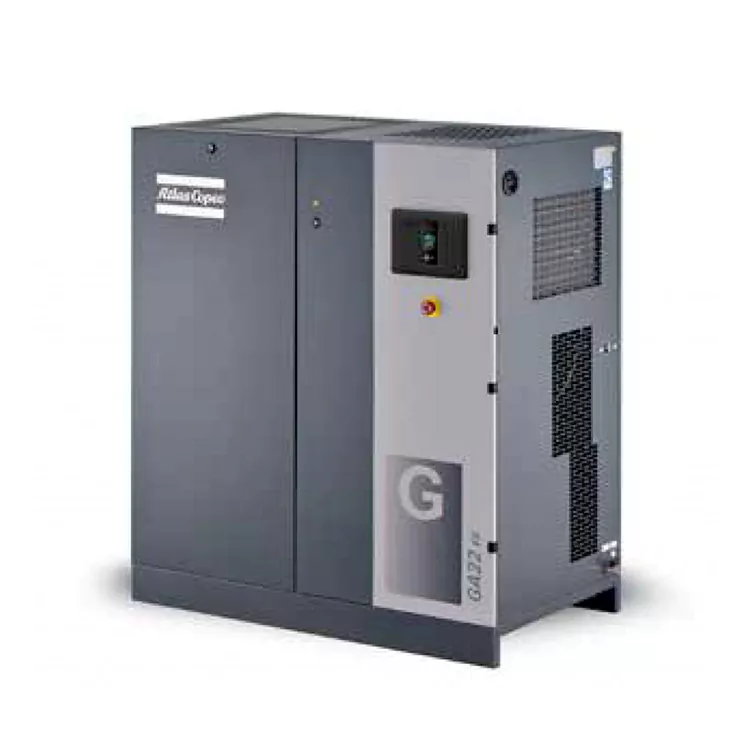

Integrated Oil-Injected Screw Compressor

Cur perdis tempus accedens Segregate Dryers, Filtra, et Lacus?

In institutis aëris setups, membra separatim oriuntur, amplum spatium area et complexum limbis inter se conexis postulantes. Haec multi-iunctim accessus saepe resistentiam inducit et viae aer potentiae effluo. Productum hanc complexionem solvit per habitationem elementi cochleae, receptatoris aeris, et olei separatoris summi efficientiae, et humoris refrigerantis siccioris intra unius arcae soni insulatae.

Hoc pacto consilium vestrum vestigium regit et limbum externum eliminat ecclesiam. Simpliciter situm unitatis in pavimento tabernario, summam electricam copiam et aeris missionem multiplicem coniunge, et facilitas tua immediatam accessum ad refrigerandum, siccum, altum puritatem aerem compressum habet.

Integrated Oil-Injected Screw Compressor

Solvendo Spatial et Installation Bottlenecks in Modern Workshops

Ratio aeri traditam compressam constituens requirit coniunctionem plurium partium separatarum - incluso compressore, piscinarum repositione aere, dryers cycling, et filtramentis olei subtilibus utendo retis amplis limbis campi. Haec layout non solum magnas quantitates magni pretii officinae areae spatii suscipit, sed etiam periculum aeris in omni nexu liciatum effluo auget, guttae pressionis systematis causans et tibias ad institutionem loci pretiosas conducere cogens.

Compressor has difficultates locales et institutionem perfecte solvit. Ponendo omnia necessaria aerem tractationis apparatum in unum compagem compactam, haec turnkey systematis institutionem laboris gratuita abscindit usque ad 70%. Facultatem tuam plene wired, tibiis, et prae-commissam attingit, significans turmam tuam simpliciter egere ad lineam principalem coniungendam et fistulam emissam ut committitur supplens mundum, siccum, altum-qualitatem aerem compressum ad lineam productionis.

Technical Parameters

Nostrae integrae turmae Integrati Olei Injecti Compressoris Cochleae machinantur ad operationem continuam, componendo gravia officia cum vestigio valde compacto:

GA Series Technical Parameters

Model	Max Operationis Impetus talea (e)	Max Operationis Pressura psi	FAD Flow l/s*	FAD Flow m³/min	FAD flow cfm	Motor Power kW	Motor Power hp	Vox Level dB (A)	Pondus Latin kg	Pondus Latin libras	Pondus plena perficientur kg	Pondus plena perficientur libras	Outlet Location
GA11	7.5	109	32.4	1.94	69.4	11	15	68	416	918	469	1035	G1*
GA11	8.5	123	29.9	1.80	64.1	11	15	68	416	918	469	1035	G1*
GA11	10.5	152	25.9	1.55	55.5	11	15	68	416	918	467	1030	G1*
GA11	13	189	22.0	1.32	47.1	11	15	68	416	918	465	1026	G1*
GA11	16	231	19.2	1.15	40.6	11	15	65	406	895	497***	1096	G1*
GA15	7.5	109	45.8	2.75	97.1	15	20	65	421	928	474	1045	G1*
GA15	8.5	123	42.0	2.52	88.9	15	20	65	421	928	474	1045	G1*
GA15	10.5	152	38.8	2.33	82.2	15	20	65	421	928	472	1041	G1*
GA15	13	189	32.6	1.95	69.0	15	20	65	421	928	470	1036	G1*
GA15	16	231	27.8	1.67	59.0	15	20	67	425	937	470	1036	G1*
GA18	7.5	109	56.5	3.39	119.6	18.5	25	67	431	950	495	1091	G1*
GA18	8.5	123	53.8	3.23	114.0	18.5	25	67	431	950	495	1091	G1*
GA18	10.5	152	49.0	2.94	103.8	18.5	25	67	431	950	493	1087	G1*
GA18	13	189	40.7	2.44	86.2	18.5	25	67	431	950	491	1082	G1*
GA18	16	231	35.5	2.13	75.2	18.5	25	67	437	963	491	1082	G1*
GA22	7.5	109	65.1	3.91	138.0	22	30	68	440	970	495	1091	G1*
GA22	8.5	123	63.5	3.81	134.6	22	30	68	440	970	495	1091	G1*
GA22	10.5	152	53.3	3.20	112.9	22	30	68	440	970	493	1087	G1*
GA22	13	189	49.0	2.94	103.8	22	30	68	440	970	491	1082	G1*
GA22	16	231	41.2	2.47	87.2	22	30	68	449	990	491	1082	G1*
GA26	7.5	109	72.9	4.37	154.4	26	35	69	500	1102	558	1230	G1*
GA26	8.5	123	68.1	4.09	144.2	26	35	69	500	1102	558	1230	G1*
GA26	10.5	152	61.5	3.69	130.3	26	35	69	500	1102	556	1226	G1*
GA26	13	189	54.7	3.28	115.9	26	35	69	500	1102	554	1221	G1*

Parametri perficiendi unitas probata ad normam ISO 1217, Ed.3, Annex C-1996, Gradus sonitus cum ISO 2151 / Pneurop / CagiPN8NTC2

Test conditionibus Reference:

· Absoluta lingua pressura: 1 bar

· Aeris diverticulum temperatus: 20°C Pressura ros punctum constructum-in siccioribus pro GA 11-26: 5°C

FAD fluxus sub pressura operating infra metiri:

· 7.5 exempla talea probata in 7 bar

· 8.5 talea exempla in 8 bar probata

· 10.5 exempla in bar 10 bar probata

· 13 bar exempla probata in 12.5 bar

GA11/15/18/22/26*/30 Exemplar Data Tabula Integrated Dryer

Model	Max Working Pressure-Latin talea (e)	Max Operationis Pressura-Latin psig	Max Opus Pressura-plena euismod talea (e)	Max Operationis Pressura-plena euismod psig	FAD Flow l/s*	FAD Flow m³/min	FAD flow cfm	Motor Power kW	Motor Power hp	Vox Level dB (A)	Pondus Latin kg	Pondus plena perficientur kg	Outlet Location
GA 11*	7.5	109	7.3	105	37.7	2.26	79.8	11	15	68	467	507	G1*
GA 11*	8.5	123	8.3	120	35.2	2.11	74.6	11	15	68	467	507	G1*
GA 11*	10.5	152	10.3	149	32.2	1.93	68.2	11	15	68	467	507	G1*
GA 11*	13	189	12.8	185	26.0	1.56	55.1	11	15	68	467	507	G1*
GA 15*	7.5	109	7.3	105	51.6	3.10	109.3	15	20	69	478	534	G1*
GA 15*	8.5	123	8.3	120	47.7	2.86	101.0	15	20	69	478	534	G1*
GA 15*	10.5	152	10.3	149	42.8	2.57	90.7	15	20	69	478	534	G1*
GA 15*	13	189	12.8	185	35.5	2.13	75.2	15	20	69	478	534	G1*
GA 18*	7.5	109	7.3	105	62.2	3.73	131.7	18.5	25	69	480	536	G1*
GA 18*	8.5	123	8.3	120	57.9	3.47	122.6	18.5	25	69	480	536	G1*
GA 18*	10.5	152	10.3	149	53.5	3.21	113.3	18.5	25	69	480	536	G1*
GA 18*	13	189	12.8	185	44.1	2.65	93.4	18.5	25	69	480	536	G1*
GA 22*	7.5	109	7.3	105	73.5	4.41	155.7	22	30	67	539	597	G1*
GA 22*	8.5	123	8.3	120	69.4	4.16	147.0	22	30	67	539	597	G1*
GA 22*	10.5	152	10.3	149	61.5	3.69	130.3	22	30	67	539	597	G1*
GA 22*	13	189	12.8	185	54.3	3.26	115.0	22	30	67	539	597	G1*
GA 26*	7.5	109	7.3	105	85.7	5.14	181.5	26	35	68	571	629	G1*
GA 26*	8.5	123	8.3	120	82.0	4.92	173.7	26	35	68	571	629	G1*
GA 26*	10.5	152	10.3	149	76.5	4.59	162.0	26	35	68	571	629	G1*
GA 26*	13	189	12.8	185	66.4	3.98	140.6	26	35	68	571	629	G1*
GA 30	7.5	109	7.3	105	95.9	5.75	203.1	30	40	70	579	634	G1*
GA 30	8.5	123	8.3	120	91.8	5.51	194.4	30	40	70	579	634	G1*
GA 30	10.5	152	10.3	149	85.0	5.10	180.0	30	40	70	579	634	G1*
GA 30	13	189	12.8	185	76.4	4.58	161.8	30	40	70	579	634	G1*

Parametri perficiendi unitas probata ad normam ISO 1217, Ed.3, Annex C-1996 Gradus strepitus obtemperat cum ISO 2151 / Pneurop / CagiPN8NTC2

Test conditionibus Reference:

· Absoluta lingua pressura: 1 bar

· Aeris diverticulum temperatus: 20°C Pressura ros punctum constructum-in siccioribus pro GA 11*-30: 2°C ~ 3°C

FAD fluxus sub pressura operating infra metiri:

· 7.5 exempla talea probata in 7 bar

· 8.5 talea exempla in 8 bar probata

· 10.5 exempla in bar 10 bar probata

· 13 bar exempla probata in 12.5 bar

Proven Structural Commodum: Non Optime instruitur postulata

Integrated Oil-Injected Screw Compressor

Circumsedere in Integrato Oil-Injecto Screw Compressor ab DECHUAN simpliciorem tuam facilitatem upgrades. Vexillum multi-componentis systemata requirunt definita pads dedicata, plumbi aeris ampla, et nexus electricae guttae independentes pro unaquaque parte ferramentorum.

Systema DECHUAN plene prae wired ac praecinitur apud officinas nostras, temporis institutionem minuens a diebus ad horas. Ostendit grave-officium, bracteae vibrationis solitariae basin, quae in quavis plani industrialis pavimento concreto sine claustris ancoris vel fundamentis specialibus collocari potest.

Technical Procurement FAQ

Q: Utrum moduli in cochleae compressor integratae sicciores moduli altiore energiae impensae augeantur?

A: Dolor noster controller coordinat operationem dryer cum compressoris onere civitatis. In inferioribus periodis productionis, sicciores squamae refrigerationis eius output ad aere redacto volumine aequant, consummationem vim necessariam impediens.

Q: Quomodo constructum-in valvae detrimentum electronicum exhauriunt munus?

A: Dissimilis viles solenoides exhaurit quae flatus pretiosissimi aeris compressi in vastum lineam singulis momentis, electronic exhauriunt in Injecto Cocleo Injecto Compressor liquido sensu interno utitur. Solum aperitur cum alveus condensatus plenus est, aquam coacervatam solvens sine pressione aeris vastationis systematis.

Q: Numquid facile est in tali pacto arcae consilium reponere Filtra?

A: Ita, liniamenta clausurae vivae-remissionis fores tollunt quae plenam accessum ad omnes consumabiles praebent. Oleum separator, elementum colum aer, et stipites inline activos carbonis positi sunt ad sustentationem vivam, directam.

Integrated Oil-Injected Screw Compressor
