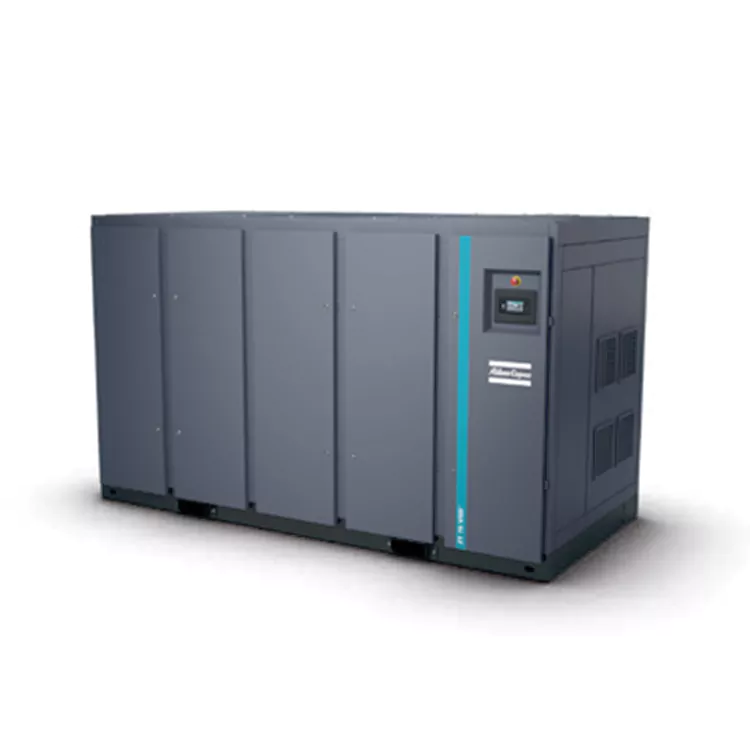

DECHUAN qualitatem Dual-Coegi VSD Oil-Free Screw Aeris Compressor ad procurationem Lupi globalis. Duos motores magnetes permanentes independentes facere, machina haec energiae usus per varias vices fabricandi optimificat.
Ad rogationes electricitatis officinas demittere, a perito Sinarum Dual-Coegi VSD Oil-Free Cochleae Aeris Compressor commeatus immediatum reditum in obsidione praebet. DECHUAN consilium magnetis permanentis dualis damna traditionalis iuncturae mechanica eliminat ac permittit commensurationes diffusas ab 20% ad 100%, congruens onera instrumentorum fluctuantium praecise.
Traditional variabilis frequentia coegi compressores uno motore utuntur ad convertendum tum summus pressus et humilis-pressurae cochleae rotors per mechanismum calces communes. Hoc damnum causat mechanica cum velocitatibus humilibus currit. Compressor aere utitur architectura superiori aluminis;
• Independentes IE5 Permanens Magnet Motors: Gradus pressus humilis et altus compressor a separatis et dedicatis motoribus magnetis permanentibus IP66 acti sunt. Unusquisque scaena decurrit ad propriam velocitatem optimam figuram.
• Lata fluit Regulatio Range: consuetudo nostra frequentiam inverters consequi stabilis fluit commensurationem inter 20% et 100%, penitus eliminare restrictivas "fenestras velocitatis" in inferioribus ad finem systematis unius motoris.
• Nulla Pressura Plus-compressio: Ratio rectae pressionis fluctuationes stricte intra 0,10 sustinet, ne energiae vastitatis cum craticula officinas nimis pressuris coniungatur.
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR/ZT 110-160 (FF) STD .
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-3900 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2). | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2). | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2). | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Secundum ISO 1217 Annex C, 4th Edition (2009), condiciones referentes ad unitatem perficiendam sunt hae:
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· Inlet temperies: 20°C
Dispositio FAD mensuratur in pressionibus operating sequentibus:
Constantini celeritatis exempla;
-7.5 bar exempla: 7 bar
-8.6 bar exempla: 7 bar
-10 bar exempla: 9 bar
exempla VSD:
-8.6 bar exempla: 7 bar
-10.4 bar exempla: 9 bar
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum modum mensuratum 2151:2004 (ISO 9614/2 intensio soni perspiciendi modum). Nuper addita est correctio facta KpAd incerta, codice teste uotis.
(3) V1= 380V, V2=400V.
(4) Pondus est tantum referendi; pondus ipsa valebit.
ZR/ZT 200-275 (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD —10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD —10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD —10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
-Relativehumidity: 0%
-Absolute lingua pressura: 1bar
-Inlet temperatus: XX°
Dimittite rate (FAD) metiri in sequentibus pressuras operating
Genus assidui celeritatis:
-7.5 talea genus: 7 bar
-8.6 talea genus: 7 bar
-10 talea genus: 9 talea
VSDtype:
-8.6 talea genus: 7 bar
-10.4 talea genus: 9 talea
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd).
ISO secundum 2151: 2004 (utendi
Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus tantum referendi est; ipsa suppeditabit pondere.
ZR 300-750
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD —10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD —10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD —10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD —10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD —10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR 200X-400X
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
ZR/ZT 75-160 VSD+
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
Traditional compressores fixum-celeritates currunt ad plenam electricum trahere etiam cum instrumenta officinas tua 40% aeris output tantum requirunt. Excessus aëris compressi simpliciter in atmosphaeram saeviit vel per longos et inefficaces cyclos exonerandos exinanitur, ubi motor volvitur sine opere utili faciendo.
Omnis Dual-Drive VSD Oil-Free Screw Air Compressor venit cum nostro Internet Rerum (IoT) administratione remota centrum. Factory fabrum secure possunt celeritates motorias, trahere potentiam, et opera summis ab quibusvis computatris vel machinationibus mobilibus adiunctis. Haec diaphaneitas permittit sustentationem iunctos ut accuratam industriam compendiorum hebdomadae super-septimanae verificetur.
Officinae rhoncus currunt continuas machinis texturas ubi tinctas tensiones pressionis aeris stabilis requirit, at volumen exactum requiritur vices continue sicut cycli imminet. DECHUAN compressorem in planta maiore textili inauguravit. Dualis IE5 systematis magnetis permanentis in molae vices dynamicas statim investigavit, pressionis lineae intra 0.10 vectem fixa retinens et facilitatem menstruum compressoris rogationum per 35% dividens.
A: N. Omnes DECHUAN VSD scrinium pluma in harmonicis filorum constructa et protegens. Plene certificati sunt ut compressor electronicorum lineas potentiae locales non pervertat vel sensitivum apparatu fabricandi automated afficiat.
A: N. Consuetudo nostra designata IE5 motores magnetes permanentes utantur omnino obsignato, oleo-lubricato portantes habitationem integrationem directe cum systemate centrali lubricationis compressoris. Hoc consilium impedit sordes et umorem ambientium, dum manuales unctas cedulas eliminando.
A: IP66 aestimationem efficit ut signationem integram contra pulverem gravem, fibras, et aquae pressurae altae rumpit. Hoc permittit motores permanentes magnetis ut fideliter in humidis, linteolis gravia ambitibus texantur, sine internis brevibus circumitionibus operam dent.
Copyright © 2025 Dechuan Compressor (Shanghai) Co., Ltd. All Rights Reserved.
