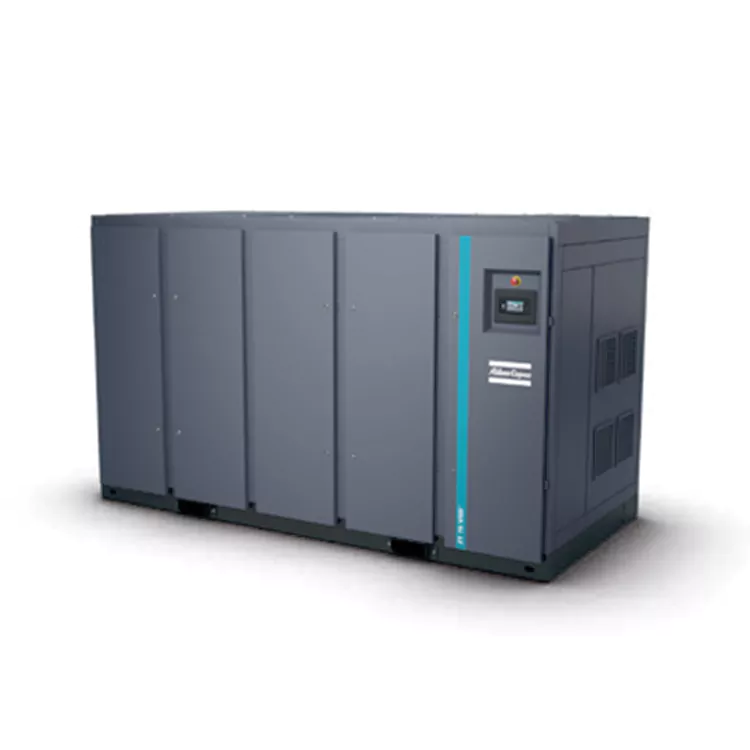

Cum 55-900kw Low-Noise Oil-Liberum Aeris Compressoris apparatum e DECHUAN emisti, ratio virtutis industrialis ad susurrans quietam operationem designatam obtines. Haec unitas utitur AGMA A5/DIN Gradus 5 anni ad tollendam gravem crepitantia calces et summus frequentia structurae vibrationis. Iuvat hodiernas officinas urbanas ne strepitus locales ambitus finium, dum productionem aeris compressi olei liberorum 100 procurant.
Ad environment quietam productionem constituere, directe importans ex certo Sinarum 55-900kw Low-Noise officinas Olei Free Air Compressoris essentialis est. DECHUAN hoc systema specializatum acoustico-inclusum cum tabulis sonis destillantibus et integris sonis radialibus refrigerationis ventilationis supplet. Configuratio haec decisiones perficiendas significanter minuit, impedit officinam lassitudinem audiendi.
Machinaria magna-scala Institutio aeris vehementem humilem-frequentiam rugitum creat, qui fundamenta structurarum damna et fracturae signa stricte soni environmentalit. Hic compressor aeris specialized integrat machinationem acusticam progressam directe in scrinium gb;
• Agma A5 Precision-instructum Gears: Potentia transmissio interna nititur DIN Grade 5 terrae anni helicae. Micro-backlash consilium removet summus picem calces gannit et collisione mechanica in grave-officium cyclos compressionis.
• Low-Energy Radiales Refrigerationis Fans: Reposito sphaerae axialis traditae, nostra congregatio radialis refrigerationis movet molem aeris volumina in inferioribus gyratoriis velocitatibus, vorticem aerodynamicam secans strepitum super 12 decibeles.
• Vibratio Isolatio Base: Caput oleum liberum compressor in gravi officio sedet, pads multi- stratum elastomer madefacit, ne energiae motus in structuras pavimentorum circumiectas transferat.
• Potestas Imaginis: 55 kW ad 900 kW continua gravis officii output.
• Capacitas Volumetric: 4.2 - 148.5 m³/min partus secundum exemplar certae lectionis.
• Transmissio Standard: AGMA A5 / DIN Gradus 5 summus exactio calces incessus.
• Insulatio Acoustica: Multi- crassitudo interna acoustica spuma enascentia cum structurae arcae IP55 signatae.
ZR/ZT 55-90 (FF) STD| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR/ZT 110-160 (FF) STD .
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-3900 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2). | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2). | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2). | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Secundum ISO 1217 Annex C, 4th Edition (2009), condiciones referentes ad unitatem perficiendam sunt hae:
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· Inlet temperies: 20°C
Dispositio FAD mensuratur in pressionibus operating sequentibus:
Constantini celeritatis exempla;
-7.5 bar exempla: 7 bar
-8.6 bar exempla: 7 bar
-10 bar exempla: 9 bar
exempla VSD:
-8.6 bar exempla: 7 bar
-10.4 bar exempla: 9 bar
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum modum mensuratum 2151:2004 (ISO 9614/2 intensio soni perspiciendi modum). Nuper addita est correctio facta KpAd incerta, codice teste uotis.
(3) V1= 380V, V2=400V.
(4) Pondus est tantum referendi; pondus ipsa valebit.
ZR/ZT 200-275 (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD —10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD —10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD —10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
-Relativehumidity: 0%
-Absolute lingua pressura: 1bar
-Inlet temperatus: XX°
Dimittite rate (FAD) metiri in sequentibus pressuras operating
Genus assidui celeritatis:
-7.5 talea genus: 7 bar
-8.6 talea genus: 7 bar
-10 talea genus: 9 talea
VSDtype:
-8.6 talea genus: 7 bar
-10.4 talea genus: 9 talea
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd).
ISO secundum 2151: 2004 (utendi
Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus tantum referendi est; ipsa suppeditabit pondere.
ZR 300-750
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD —10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD —10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD —10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD —10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD —10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR 200X-400X
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
In pactionibus et supellectili fabricandis plantis circa areas commerciales positae, strepitus pollutio continuum iuris periculum est. DECHUAN hanc peculiarem 55-900kw sonitum olei-liberi Air Compressoris ad summum densitatis packaging officinam instruxit. Reponendo maiora, systemata piston pulsum cum hac structura cochleae soni insulatae, planta omisso limite suo sonitus gradus ad plene cum signis localibus obtemperans, milia declinans in multarum regulatoriarum frequentatione.
• Full-Load Anechoic Chamber Testing: Unitates currunt ad maximam 900kw capacitatem in specialibus sonis cubiculis ad describendas profiles acousticos definitos per omnes frequentias.
• Dynamica Rotorum conpensatio: Rotores Premium obductis sunt dynamice libratae ad tollendas parvas wobbles quae longum tempus gerunt strepitum et structuram causant.
• TÜV Classis 0 Oil-Freti Certification: Laboratorium stricte analysi nulla confirmat oleum contentum in aëre compresso, purum gasi cum quiete operatione spondens.
A: Minime. Interna evacuatione nititur pressione alta pressione radiali ventilabro refrigerationis negativae pressionis zonam intra scrinium creat. Aer frigidus per ductus directe iaculis ductus per ferrum immaculatum precooler sugitur et sursum emittitur, stabilis internam temperiem servans etiam in 50°C ambitus plantae ambientium.
A: Unitates aeris Latin industrialis saepe utuntur anni inferioris gradus qui micro-backlash super tempus enucleant, causando sonum garrulum metallicum sub torquibus altis. Nostra DIN Grade 5 anni pluma dentes cum micrometri praecisione profuerunt, seamless reticulum invigilantes contactum, qui tam extenuat attritionem mechanicam soni ac potentiae transmissionis detrimentum.
A: Ita. Quia tunica acustica structuralis resonantiae aeris altam et medium frequentiam haurit, profile decibel exterior signanter minor est quam vexillum apertum machinae machinae. Hoc officinas permittit ut diu tollatur, fistulae pretiosae currit ponendo 55-900kw Low-Noise Oil-Liberi Aeris Compressor propius ad lineam productionis actuali.
Copyright © 2025 Dechuan Compressor (Shanghai) Co., Ltd. All Rights Reserved.
