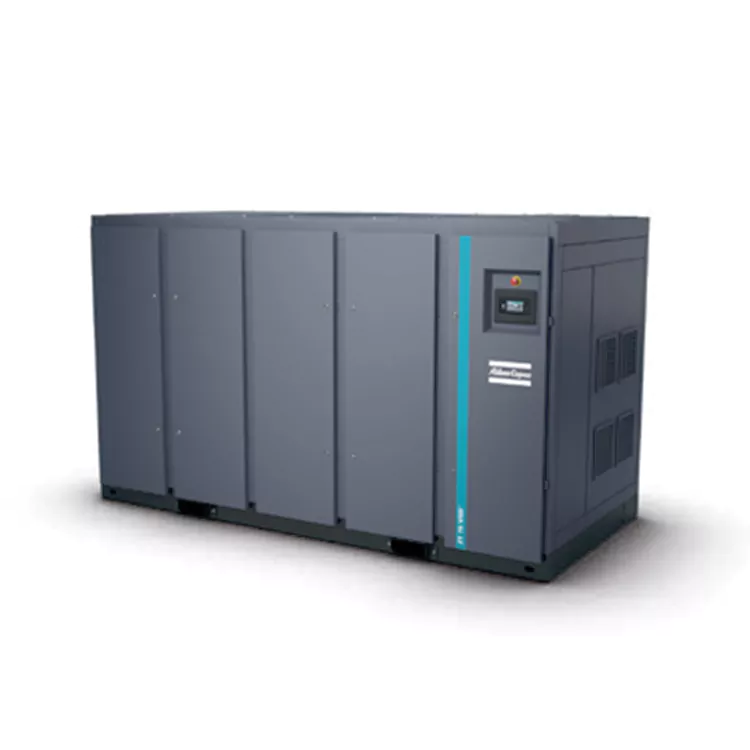

DECHUAN 55-900kw Eco Olei Free Screw Compressor pro procuratione globali viridi offert. Solutus ab oleo et designatus cum caloris vasti optiones recuperandi, haec ratio adiuvat sustineri plantas suas vestigium environmental extenuant. Nunc iube!
Condere lineam eco-amicam fabricandis quae mandatorum dual-carboni globalis obtemperat, emens ex certificatis Sinis 55-900kw Eco Oil-Free Screw Compressor amet dolor optio est. Consilium oleum-liberum DECHUAN necessitatem unctionis dispositionis excludit, adiuvans officinas globales proposita corporatum sustineri posse stricte occurrere.
Plus 80% energiae electricae ab aere compressore consumptae directe in calorem convertitur. In regulas normas, haec energia thermarum in ambitu per turres refrigerandas vel radiatores simpliciter expellitur, dum facilitas extra pecuniam impendit in gas vel electricitatem naturalem ad calefaciendum processum industriae aquae vel operantis imbres.
Hoc 55-900kw Eco Oil-Free Screw Compressor capit hunc amissum calorem efficienter;
• Calor Integratus Recuperatio Skids: Gravis-officium, insulatas aquae ansas coniungunt directe ad gyros compressoris thermas ad messem vasti caloris tuto.
• 90°C Aquae calidae Generatio: Aqua alta temperatura apta ad aedificationem hiemalis calefaciendi, boiler preheating, aut systemata osmosis e converso.
• Dual-Carbon Regulatory Obsequium: reducit fiduciam in fossili-cibus boilers, demisso emissiones gas CONSERVATORIUM officinas tuas.
• Displacement Capacity: 4.2 - 148.5 m³/min aura munda output
• Potentia configurationis: 55kW ad 900kW figurarum scalabiles
• aqua Loop Output Temperature: Constanter supra LXX ° C ad XC ° C secundum plant setup
• Aeris Quality Certification: TÜV certified CLASS 0 nulla-olei vestigium traditio
ZR/ZT 55-90 (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR/ZT 110-160 (FF) STD .
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-3900 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2). | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2). | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2). | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Secundum ISO 1217 Annex C, 4th Edition (2009), condiciones referentes ad unitatem perficiendam sunt hae:
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· Inlet temperies: 20°C
Dispositio FAD mensuratur in pressionibus operating sequentibus:
Constantini celeritatis exempla;
-7.5 bar exempla: 7 bar
-8.6 bar exempla: 7 bar
-10 bar exempla: 9 bar
exempla VSD:
-8.6 bar exempla: 7 bar
-10.4 bar exempla: 9 bar
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum modum mensuratum 2151:2004 (ISO 9614/2 intensio soni perspiciendi modum). Nuper addita est correctio facta KpAd incerta, codice teste uotis.
(3) V1= 380V, V2=400V.
(4) Pondus est tantum referendi; pondus ipsa valebit.
ZR/ZT 200-275 (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD —10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD —10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD —10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
-Relativehumidity: 0%
-Absolute lingua pressura: 1bar
-Inlet temperatus: XX°
Dimittite rate (FAD) metiri in sequentibus pressuras operating
Genus assidui celeritatis:
-7.5 talea genus: 7 bar
-8.6 talea genus: 7 bar
-10 talea genus: 9 talea
VSDtype:
-8.6 talea genus: 7 bar
-10.4 talea genus: 9 talea
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd).
ISO secundum 2151: 2004 (utendi
Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus tantum referendi est; ipsa suppeditabit pondere.
ZR 300-750
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD —10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD —10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD —10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD —10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD —10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR 200X-400X
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
ZR/ZT 75-160 VSD+
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
DECHUAN multiplices 4500HP unitates centrifugas ad facilitas pharmaceutica retrofitta, nostros speciales caloris commutatores integrantes. Systema aquae calidae generatae usque ad 90°C conservato operatione compressore stabili. Hic calor recuperatus redirectus est ad praeheat boiler feedwater et currere contraria productionem aquae osmosis, cum reditibus oeconomicis significantibus providens.
Operatio metalla sex 375kW retrofitta et duo 250kW compressores cum systemate aquatico constanti-temperati secundario nostro. Receptus calor repositus summus caliditatis vaporis boilers antea usus est ad imbres operariorum, salvis mille talentis vaporis annuatim occurrens omnibus aquae calidae voluminis requisitis.
Omnis 55-900kw Eco Oil-Free Screw Compressor sub stricto ambitus compage administratione congregatur. Comprobamus omnes materies - a valvis mechanicis demissa exonerare usque ad fistulam chalybem internam incorruptam manipulos - sustineri esse ortos et processus sustineri, mundum vitalem e officina nostra ad tuas procurare.
A: Aeris compressio naturaliter significantes scelerisque energiae generat. Loco hunc calorem extra per refrigerationem fans insiliendi, ratio nostra eam in laminam secundariam caloris commutatoris trahit. Haec industria prae calore ferventis aquae vel imbres plantae praevenire potest, reducendo sarcinam in fossilium focalium calentium facilitas tua.
A: Ita. Systema notat an automated valvae bypass. Cum aqua calida guttas per aestatem postulant, systema energiae scelerisque excessus reducit ad ansas refrigerationis vexillum ut productionem aeris continuum curet.
A: No. Aquae circulationes internae iunguntur utentes definitae temperaturae ratio temperandi. Compressoris suctionis temperaturae secundae stadii stabilis stabilit, firmans efficientiam machinae volutricis.
Copyright © 2025 Dechuan Compressor (Shanghai) Co., Ltd. All Rights Reserved.
