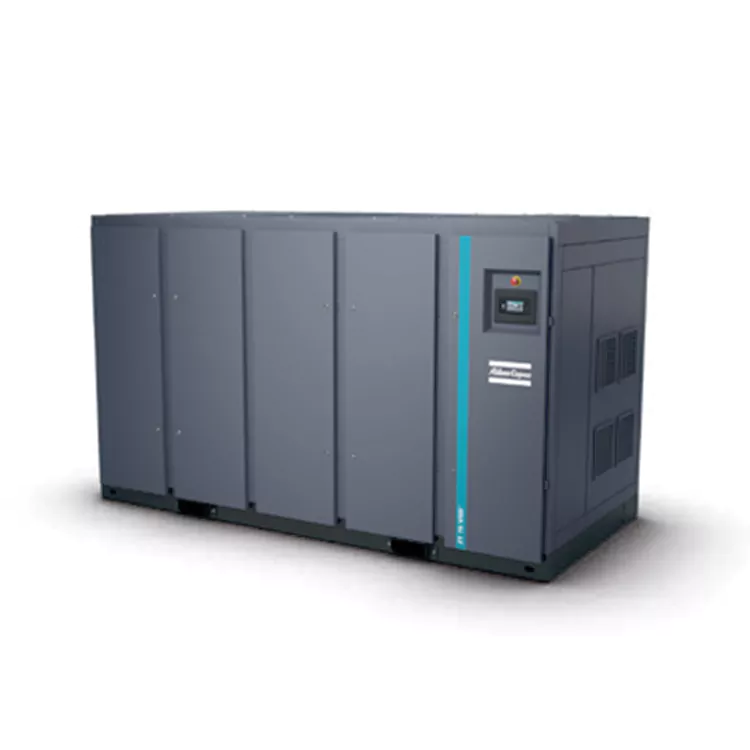

Anti-corrosionem olei-Free Screw Compressoris de DECHUAN durabilem 55-900kw emere ut diuturnum tempus apparatum superesset in ambitus marinis et chemicis duris. Facere a confragoso TEFC IP55 motore et crassa refrigeratione iaccam, machina machinata est ad resistendum fumos acidicos et particulas chemicas aerium.
Cum lineae productionis upgradationis in zonis chemicis duris, ex professionalibus Sinarum 55-900kw Anti-corrosionis Oil-Freti Compressoris supplementi sicut DECHUAN praebet, necessariam firmitatem praebet. Omnis pars humida exposita construitur ex ferro intemerato premium vel cum speciali tutela tunicarum tutelarum ad corrosionem structurarum tollendam.
Compressores aeris Latin in plantis chemicis vel zonas fabricandis maritimarum instituti cito laborant a rotoribus foveolis, tubulis rubigine refrigerandis, et electricis brevibus circuitibus per ambientium umorem et vapores corrosivorum causatis. Hoc ducit frequentes pinum aeris, stillicidium in efficientiam volumetricam, et defectus frigidiores sumptuosos.
Compressor robustam tutelam environmental praebet:
• Premium Stainless Chalybe tube manipulis: Marinus-gradus immaculatus ferro resistit pitting et chemicus accentus corrosio crepuit per cyclos longi operandi.
• TEFC IP55 Electricae signatae: Plene impedit pulverem, salsum aerem maris, et vapores chemicos ne attingant anfractus motores sensibiles vel nexus electricas.
• Provectus Inertis Rotor Coating: Sublimis compages tutelae iacuit oxidatio rotor impedit, compressionem cubiculi mundam servans et certas tolerantias conservans.
Systemata industriae aeris operantes in zonis chemicis processus, vel maritimae facultates constantem expositam praebent ad acida aeria, salsura et humorem mordax. Vexillum aeris unitas cito rubiginem patietur et fovere, ducens ad aerem pinum et lockups rotor. Hoc speciale 55-900kw Anti-Corrosio Olei Free Screw Compressor aedificatur ad durandum;
• Full Stainless Steel Coolers & Separation Units: Omnes caloris interni commutatores et labyrinthum aquae separatores ex summo gradu intemeratae chalybe exstructae sunt, labefactationem tabe rubiginem penitus eliminantes.
• Provectus Rotor Layer Praesidium: Cochleae duplices rotores cochleae proprietatis hypotheticae tunicae proprietatis coniunguntur resistens chemicis naufragii ab ambientibus gasorum industrialium.
• Arca electrica IP55 signata: Tota clausura moderatio et frequentia variabilium obsignata sunt contra vapores acidicos et aerem salsum maritimum, electronicas criticas tutantes.
• Corrosio Resistentia Level: Marinus et gravis industriae chemicae gradus
• Potestas Range Electio: 55kW ad 900kW gravis officium designs
• Air Volume Delivery: 4.2 ad 148.5 m³/min continuum output
• Cooler Construction: Robotic-iuncta ferro immaculata cum areis superficiebus stellarum expansis
ZR/ZT 55-90 (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR/ZT 110-160 (FF) STD .
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V1) | 8.6 | 123.3-3900 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-8.6 STD(V2). | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD-10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-8.6 STD(V2). | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD-10.4 STD(V2). | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
Secundum ISO 1217 Annex C, 4th Edition (2009), condiciones referentes ad unitatem perficiendam sunt hae:
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· Inlet temperies: 20°C
Dispositio FAD mensuratur in pressionibus operating sequentibus:
Constantini celeritatis exempla;
-7.5 bar exempla: 7 bar
-8.6 bar exempla: 7 bar
-10 bar exempla: 9 bar
exempla VSD:
-8.6 bar exempla: 7 bar
-10.4 bar exempla: 9 bar
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum modum mensuratum 2151:2004 (ISO 9614/2 intensio soni perspiciendi modum). Nuper addita est correctio facta KpAd incerta, codice teste uotis.
(3) V1= 380V, V2=400V.
(4) Pondus est tantum referendi; pondus ipsa valebit.
ZR/ZT 200-275 (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7.5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD —10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD —10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD —10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
-Relativehumidity: 0%
-Absolute lingua pressura: 1bar
-Inlet temperatus: XX°
Dimittite rate (FAD) metiri in sequentibus pressuras operating
Genus assidui celeritatis:
-7.5 talea genus: 7 bar
-8.6 talea genus: 7 bar
-10 talea genus: 9 talea
VSDtype:
-8.6 talea genus: 7 bar
-10.4 talea genus: 9 talea
(2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd).
ISO secundum 2151: 2004 (utendi
Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus tantum referendi est; ipsa suppeditabit pondere.
ZR 300-750
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7.5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7.5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7.5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Pondus-plena perficientur (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD —10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD —10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD —10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD —10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD —10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
ZR 200X-400X
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Power installed (kW) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Model | Maxime exhauriunt pressura (bar) | Negotiationis FAD(l/s) | Negotiationis FAD (m³/min) | Vox Level (dB(A)) | Pondus-Latin (kg) | Magnitudo L(mm) | Magnitudo W (mm) | Magnitudo H (mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Facientes condiciones referentiae unitatis mensuratae sunt secundum Annex C, 4th edition (2009) ISO 1217;
· Humiditas relativa: 0%
· Absoluta lingua pressura: 1 bar
· AESTUARIUM temperatus: 20°C solvens rate (FAD) mensuratus est in sequentibus impressionibus operating:
Genus assidui celeritatis:
· -7.5 talea genus: 7 bar
· -8.6 talea genus: 7 bar
· -10 talea genus: 9 bar
VSD genus:
· -8.6 talea genus: 7 bar
· -10.4 talea genus: 9 bar
· (2) Class A grave emissionem soni pressionis gradu workstation (LpWSAd). ISO secundum 2151:2004 metiri (utendi Novus adiectus est factor correctionis pretii omnino incerti (KpAd), conformis e codice test.
(3) Pondus est tantum referendi; ipsa suppeditabit pondere.
• Marine-Grade Desiccant Placement: Summus capacitas humoris absorbentis sarcinas intra nucleum chassis positae ne condensatio in transitu oceani.
• Vapor Corrosio Inhibitoris (VCI) Horreat AMICTORIUM: Totum 55-900kw Anti-Corrosio Olei Liberi Screw Compressor arcte involutus est in speciali VCI veli tutelae ut obstruat aerem salsum mare.
• Crate ligneo suffumigata adfirmatio: in spissis laqueis ferreis saepta et in cratibus ligneis plene inclusis ut damna liberae traditionis in tuto collocetur.
A: Ita. Coniunctio clausurae gravis-officii tempestatis, electrica systematum IP55-aestimatorum, et interna ferro immaculata permittit unitatem ad operandum in occasus maritimis fideliter expositae, altae humiditatis maritimae.
A: Totum corpus humidum separator ex gravi METIOR immaculata ferro fabricatur. Nullas partes moventes, vel retibus delicatis internis, quae tardant vel exedunt, cum condensatibus acidicis atmosphaericis expositae notantur.
A: Provectior coating nostra applicatur per compagem hypotheticam summus temperatus, obice chemica non-porosa creans. Vapores acidici in 55-900kw attracti Anti-Corrosionis Olei Liberi Screw Compressoris superficies laeves praeter lapsus sine vinculo vel ignominioso subest metallo.
Copyright © 2025 Dechuan Compressor (Shanghai) Co., Ltd. All Rights Reserved.
